U-VALUE CALCULATOR

SuperFOIL SF19+

Exceptional performance and unmatched quality; thermal insulation standards begin with SuperFOIL SF19+

Energy-efficient Multifoil Insulation For Use In Roofs, Walls & Floors…

SF19+ proves that the best-performing insulation product doesn’t have to be bulky anymore. Designed to deliver the functionality beyond your expectations, SF19+ is one of the thinnest, sustainable and highest-performing multifoil insulation options available today. Each layer of SF19+ offers a unique level of quality, performance, and versatility. Whether used as a standalone solution or as part of a hybrid setup, SF19+ can effectively meet the required building regulations performance and U-value requirements.

SuperFOIL SF19+

3 IN 1 DESIGN

A certified 3-in-1 product, providing high-performing insulation, vapour control layer (VCL), and a radiant barrier—all within a single product.

ACHIEVE BUILDING COMPLIANCE

Meet or exceed project requirements, whether used on its own or in hybrid solutions. Rigorous testing ensures compliance with the latest building regulations.

EASY TO INSTALL

Multifunctional,  lightweight and easy to install design that requires no specialist tools.

SUSTAINABLE

Each product is manufactured from up to 40% recycled plastic content and is fully recyclable at the end of its 50+ year lifespan.

IDEAL FOR USE IN

New build, retrofit, timber-frame and DIY projects to achieve maximum performance, while maintaining a slim profile.

CLAIM YOUR FREE SAMPLE PACK

How SuperFOIL SF19+ Benefits You

SuperFOIL SF19+’s reflective foil acts as a radiant barrier, preventing unnecessary heat gain or loss. The built-in VCL minimises the risks of moisture penetration, condensation, and mould growth. Additionally, the inbuilt insulated waddings act as an effective insulator, preventing heat from passing in or out of the house.

With SuperFOIL’s vapour control products, your property will always be protected from temperature fluctuation, cold spots and condensation, ensuring year-round comfort and savings.

Due to its multifunctional design, SF19+ achieves maximum performance while maintaining a slim profile. Using SF19+ in your project simplifies your insulation job, saving you space, time, and money on installation.

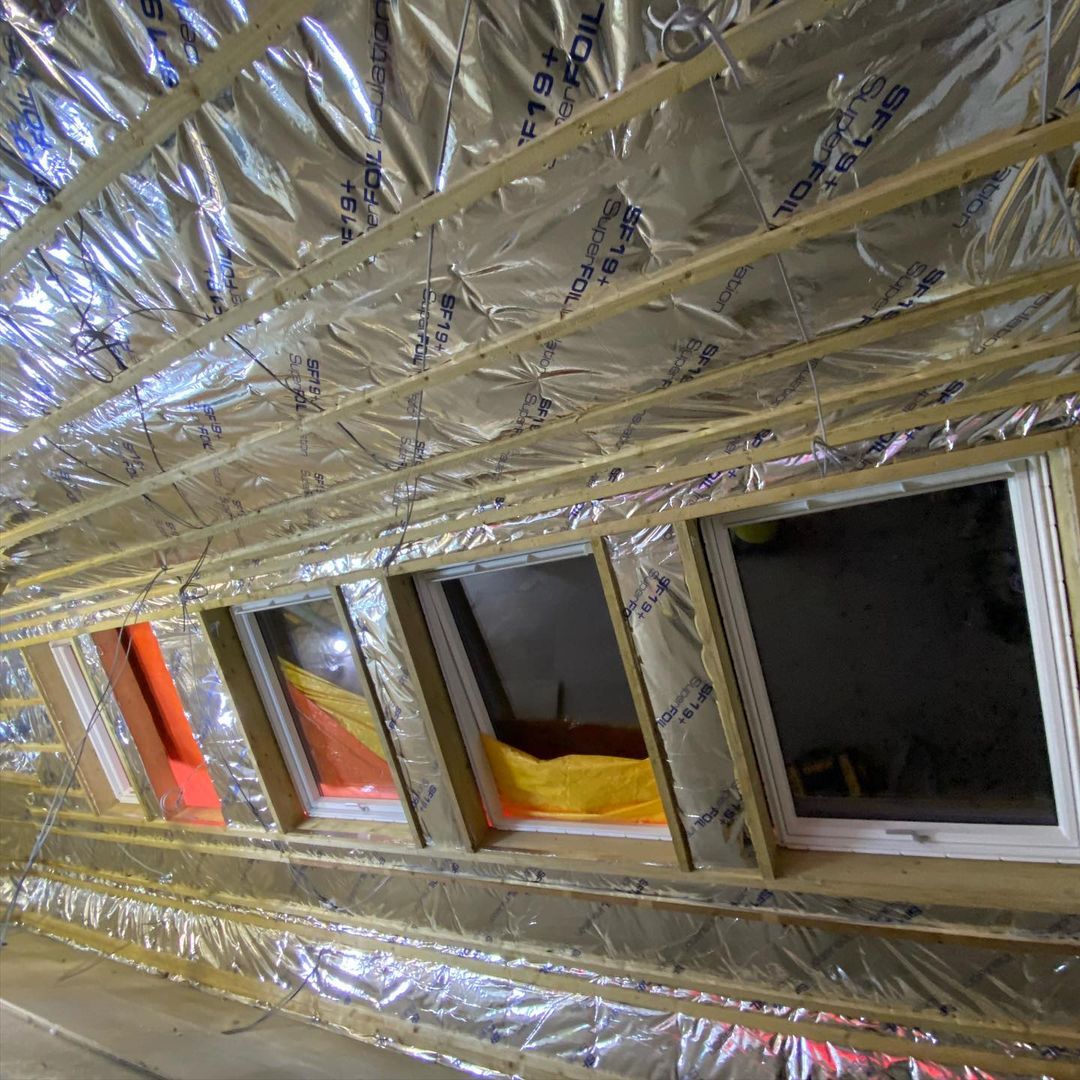

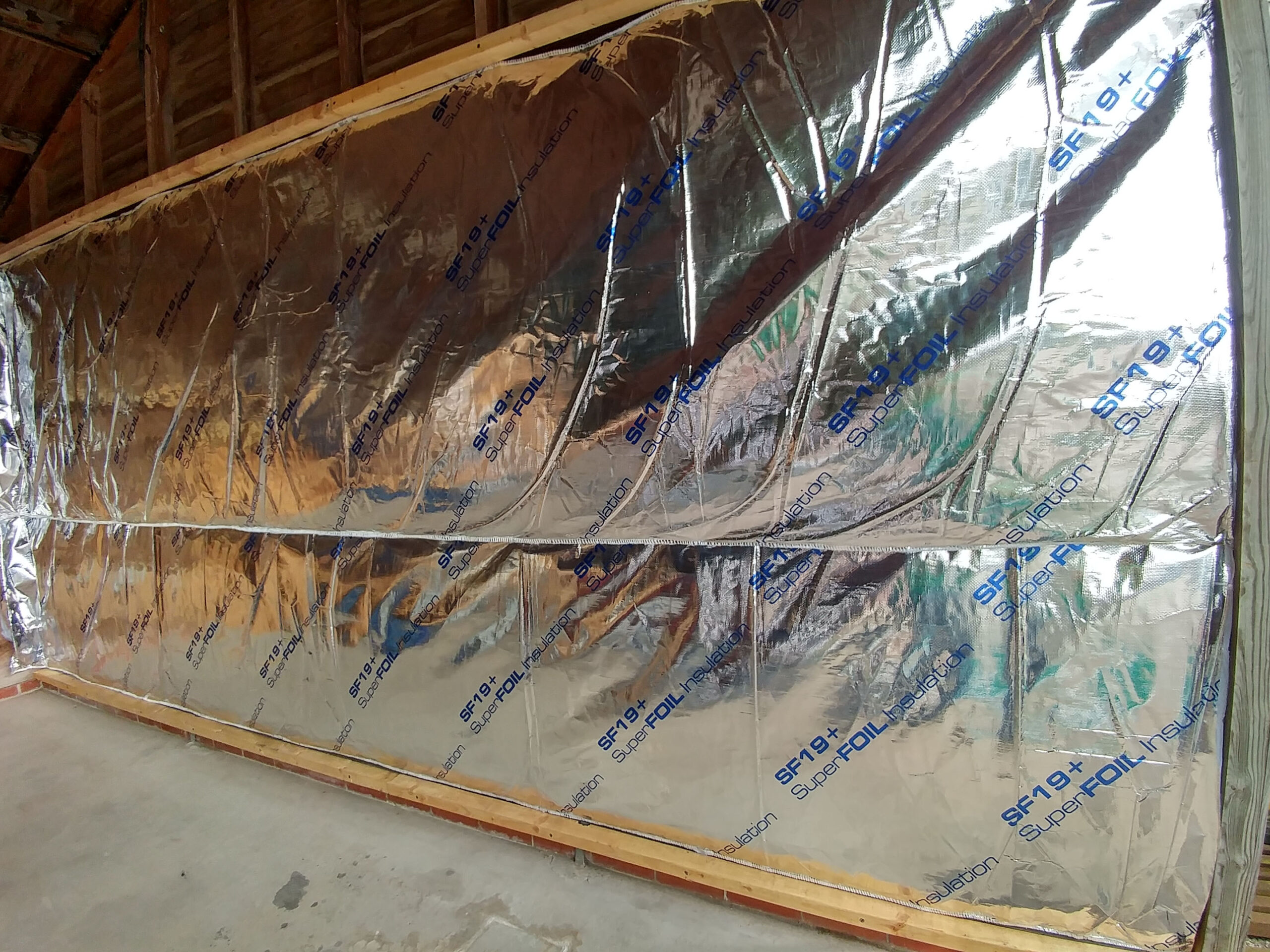

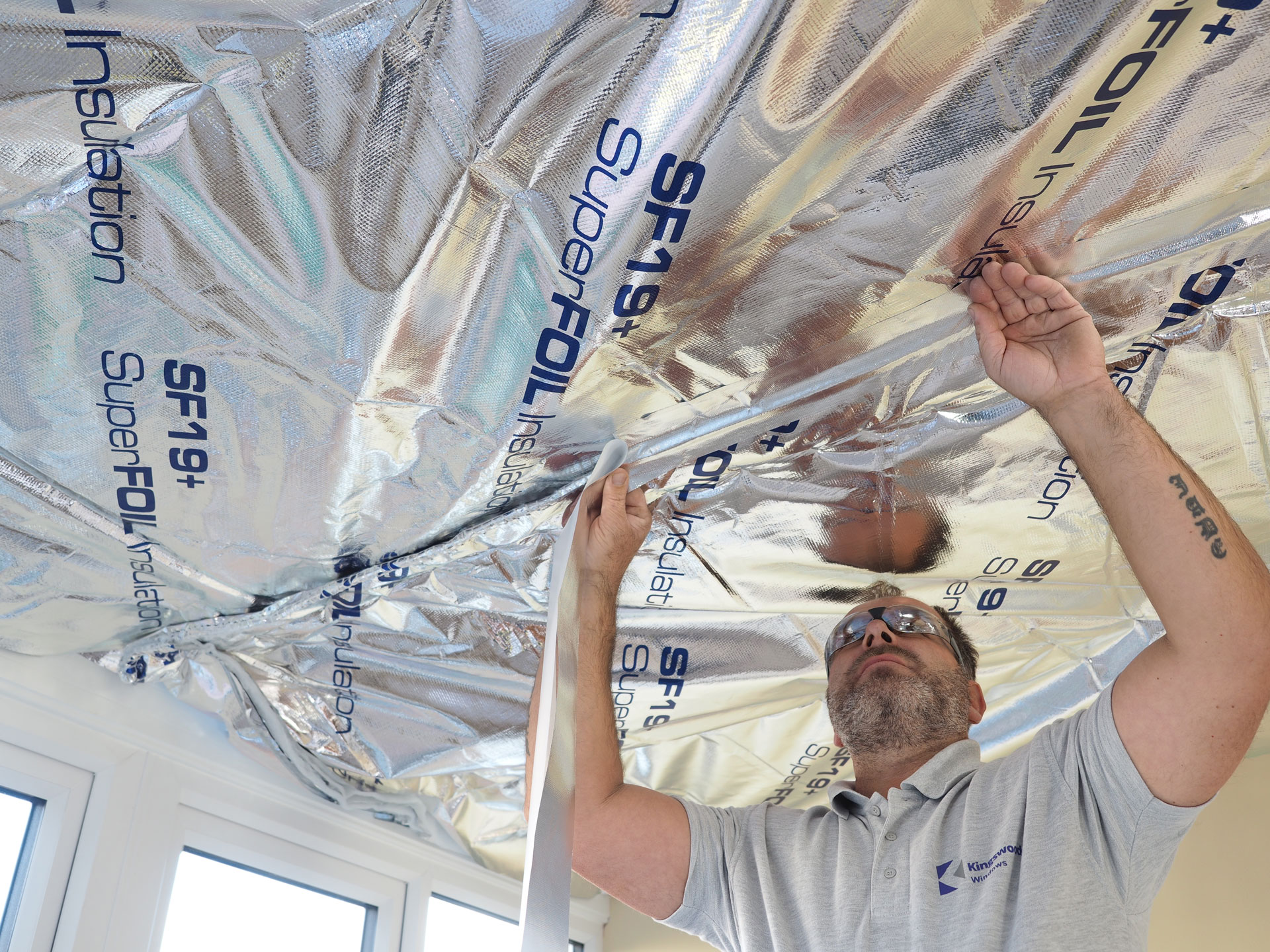

Applications

Compared to many traditional insulation types, SuperFOIL SF19+’s ease of installation and flexibility minimise product wastage and installation time. Offering excellent value for money, our multifoil insulation is perfect for new builds, renovations, and extensions. It is versatile enough to be used in both domestic and commercial projects, regardless of the project’s size and scale. This means you only need to purchase one product to cover your roof, walls, and floor!

image image image

Technical Information

Technical Information

SELECT VARIABLE

THERMAL PERFORMANCE
PRODUCT DIMENSIONS
FIRE PERFORMANCE
ADDITIONAL INFO
PRODUCT COMPOSITION
Specification Value
Product SF19+
Core Performance 1.63 R Value
Roof Performance* 2.53 R Value
Wall Performance* 2.96 R Value
Floor Performance* 4.29 R Value
Emittance 0.05

*Core value + 2 air spaces / EN 16012

Specification Value
Thickness ( Nominal) 45mm
Length 10m
Width 1.2m/1.5m
Coverage 12m²/15m²
Weight 10kg/13kg

*Core value + 2 air spaces / EN 16012

Specification Value
Reaction To Fire (Euroclass) Class F

*Core value + 2 air spaces / EN 16012

Specification Value
Water Vapour Resistance 1200MNs/g
Resistance To Water Penetration W1
Tensile Properties (Length) 606/580N/50mm
Tensile Properties (Width) 514/526N/50mm
Resistance to Tearing (Length) 275N
Resistance to Tearing (Width) 305N
Elongation (Length) 24%
Elongation (Width) 23%
Flexibility at Low Temp. -40°C

*Core value + 2 air spaces / EN 16012

Specification Value
Reinforced Heavy Duty Double Foil Laminated Outer Layers 2
Mesh Reinforced Foil Laminated Outer Layers 0
Aluminium Coated Reflective Foil PET Layers 4
Thermo Foam Separation Layers 0
Loft Quilt 80g/sqm Layers 5
Total Layers 11

*Core value + 2 air spaces / EN 16012
