SuperFOIL SFUF

When it comes to saving space and insulating effectively, SuperFOIL SFUF is the premium choice you are looking for.

Reflective Multifoil Insulation For Use In Solid & Suspended Floors…

Our underfloor insulation is created using the most modern technology and exceptionally high standards to help you insulate your property most efficiently. Designed after considering all types of underfloor heating, SuperFOIL SFUF is an incredibly versatile solution. It can be used under screeded or laminated floors, over and under suspended concrete or timber floors, or even for your underfloor radiant heating pipes—without ever having to compromise your space.

SFUF

3 IN 1 DESIGN

A certified 3-in-1 product, providing high-performing insulation, vapour control layer (VCL), and a radiant barrier—all within a single product.

ACHIEVE BUILDING COMPLIANCE

Meet or exceed project requirements, whether used on its own or in hybrid solutions. Rigorous testing ensures compliance with the latest building regulations.

EASY TO INSTALL

Multifunctional,  lightweight and easy to install design that requires no specialist tools.

IDEAL FOR USE IN

New build, retrofit, timber-frame and DIY projects to achieve maximum performance, while maintaining a slim profile.

CLAIM YOUR FREE SAMPLE PACK

How SuperFOIL SFUF Benefits You

Originally designed for solid floor applications, SFUF’s high-performance insulation isn’t limited to floors; it’s a versatile solution for roofs, walls, and floors. Thanks to its highly efficient 3-in-1 design, SuperFOIL SFUF provides high-performing insulation, a vapour control layer, and a radiant barrier. This significantly helps improve the U-value, comfort, and energy efficiency of your property without increasing your floor depths.

When installed properly, the highly reflective SFUF offers multiple benefits for your home, including optimal thermal performance, energy conservation, minimising thermal bridging, and even impressive sound insulation (reducing noise by up to 22dB). SFUF’s exceptional high standard includes a specialist polythene top layer, allowing direct application under screeding. The built-in protective layer means the top can be screeded without worrying about damage to the insulation. The grid markings on the foil make installation effortless and time-saving.

Applications

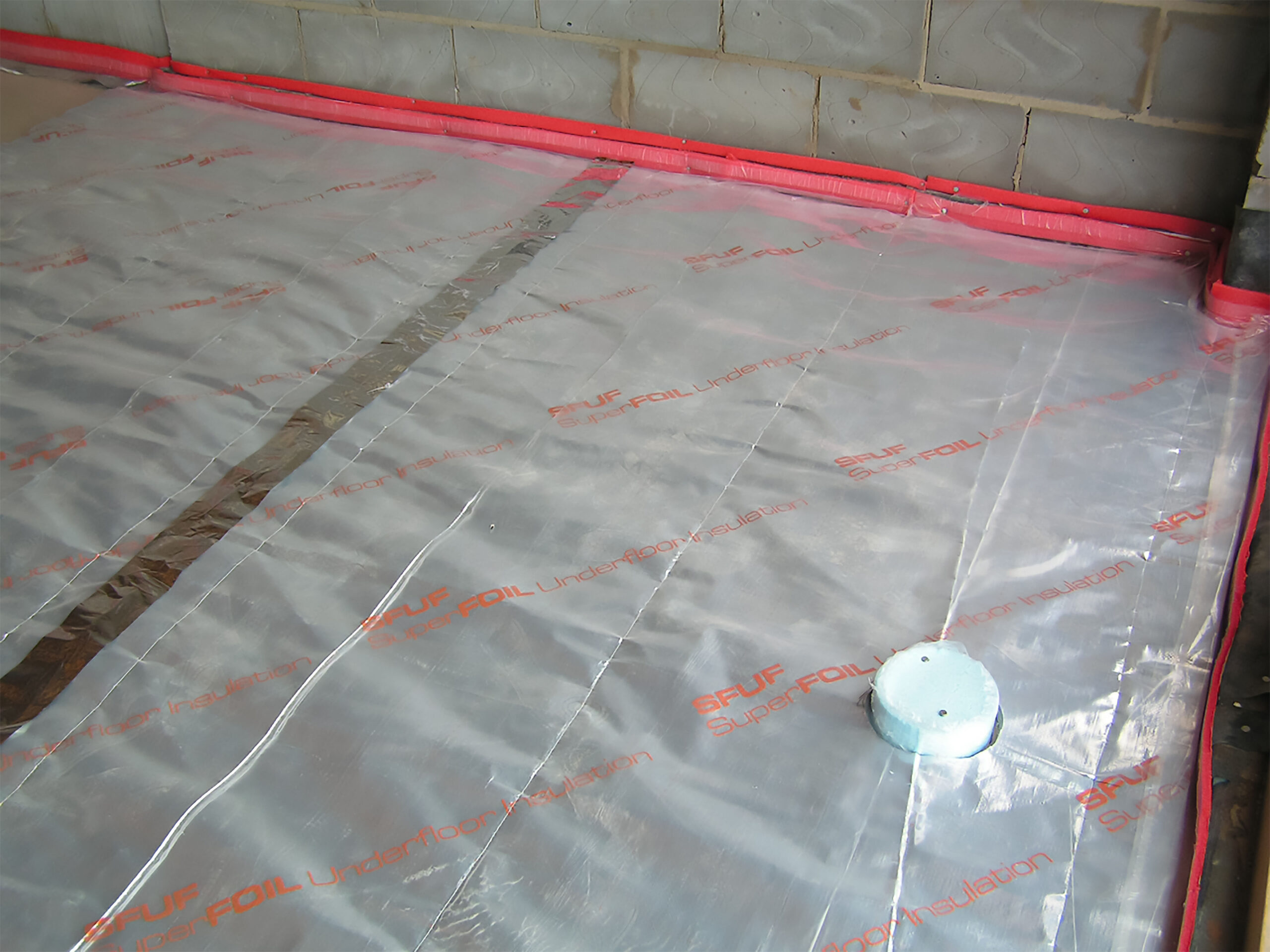

Due to its lightweight, flexible, and versatile design, SFUF is perfect for all underfloor insulation applications across domestic or commercial projects, regardless of the size and scale. When installed with minimal compression and without air gaps, SFUF creates an airtight project and provides a thermal break, even in areas difficult to insulate using traditional insulation materials. A cost-effective and slim alternative to bulky and heavy insulation types, SFUF is quick and easy to install and can meet all your project requirements for new builds, extensions, or retrofit projects.

image image image

Technical Information

Technical Information

SELECT VARIABLE

THERMAL PERFORMANCE
PRODUCT DIMENSIONS
FIRE PERFORMANCE
ADDITIONAL INFO
PRODUCT COMPOSITION
Specification Value
Product SFUF
Core Performance 0.8 R Value
Roof Performance 0.8 R Value
Wall Performance 0.8 R Value
Floor Performance 0.8 R Value





Specification Value
Thickness 6mm
Length 8m
Width 1.5m
Coverage 12m²
Weight 6kg





Specification Value
Reaction To Fire (Euroclass) NPD





Specification Value
Water Vapour Resistance 1200MNs/g
Resistance To Water Penetration W1
Tensile Properties (Length) 606/580N/50mm
Tensile Properties (Width) 514/526N/50mm
Resistance to Tearing (Length) 275N
Resistance to Tearing (Width) 305N
Elongation (Length) 24%
Elongation (Width) 23%
Flexibility at Low Temp. -40°C





Specification Value
Reinforced Heavy Duty Double Laminated Foil 2
Aluminium Coated Reflective Foil PET Layers 4
Thermo Foam Separation Layers 6
Polyethylene protective layer 1
Total Layers 13
