U-VALUE CALCULATOR

SuperFOIL SFTV 1L

Protect your living spaces from condensation and minimise up to 95% of radiant heat loss or gain; you only need one product for both.

Reflective Radiant Barriers For Use In Roofs, Walls & Floors…

The highly reflective foil surface acts as a barrier to reflect radiant heat rather than absorb it, like traditional insulation types. Radiant Barriers minimise solar heat gain and overheating during summer and help retain heat inside your property during winter. This means Radiant Barriers are the perfect solution to reduce your dependence on heating and cooling systems, saving you money on energy bills and preventing structural damage from condensation.

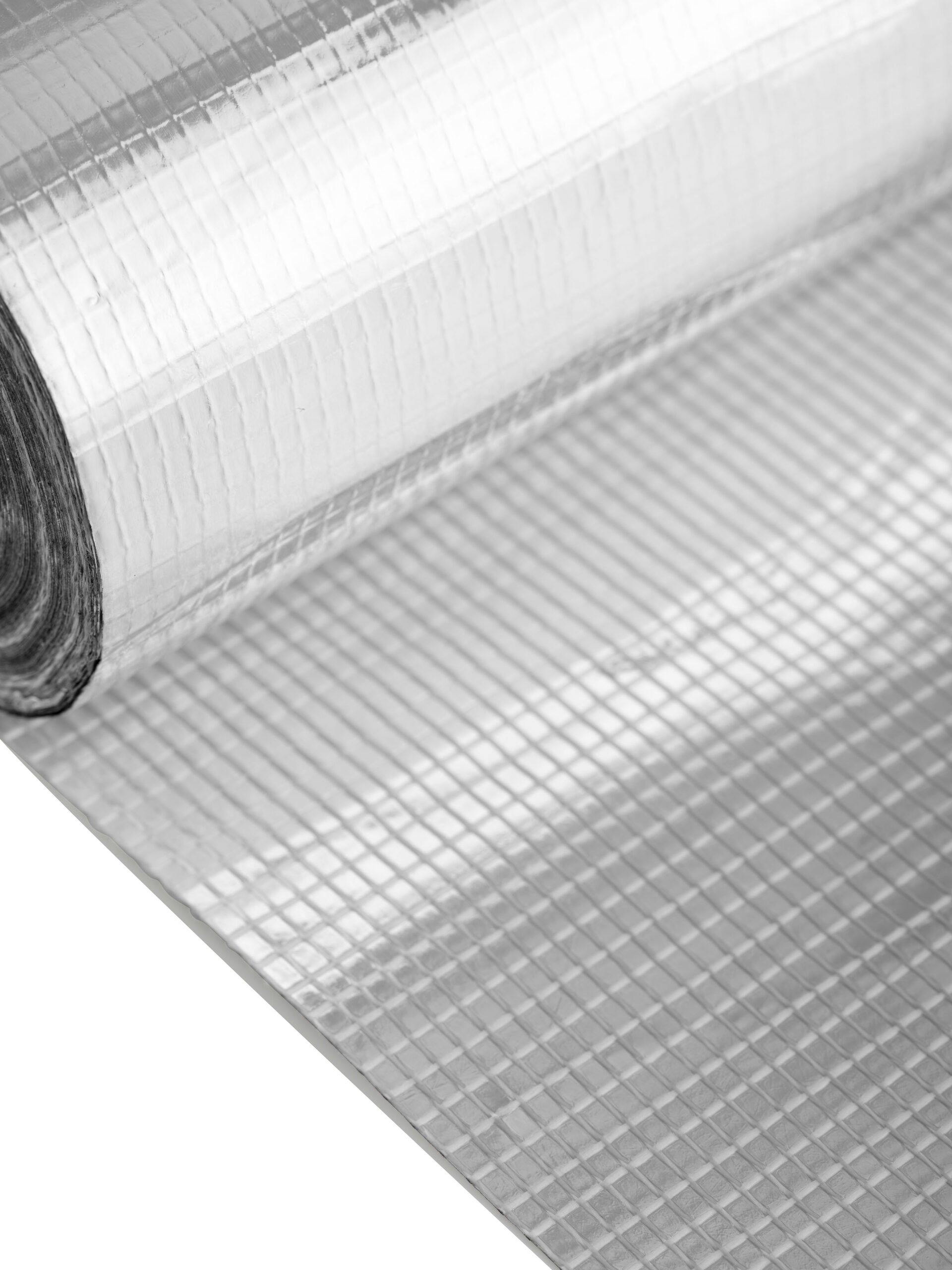

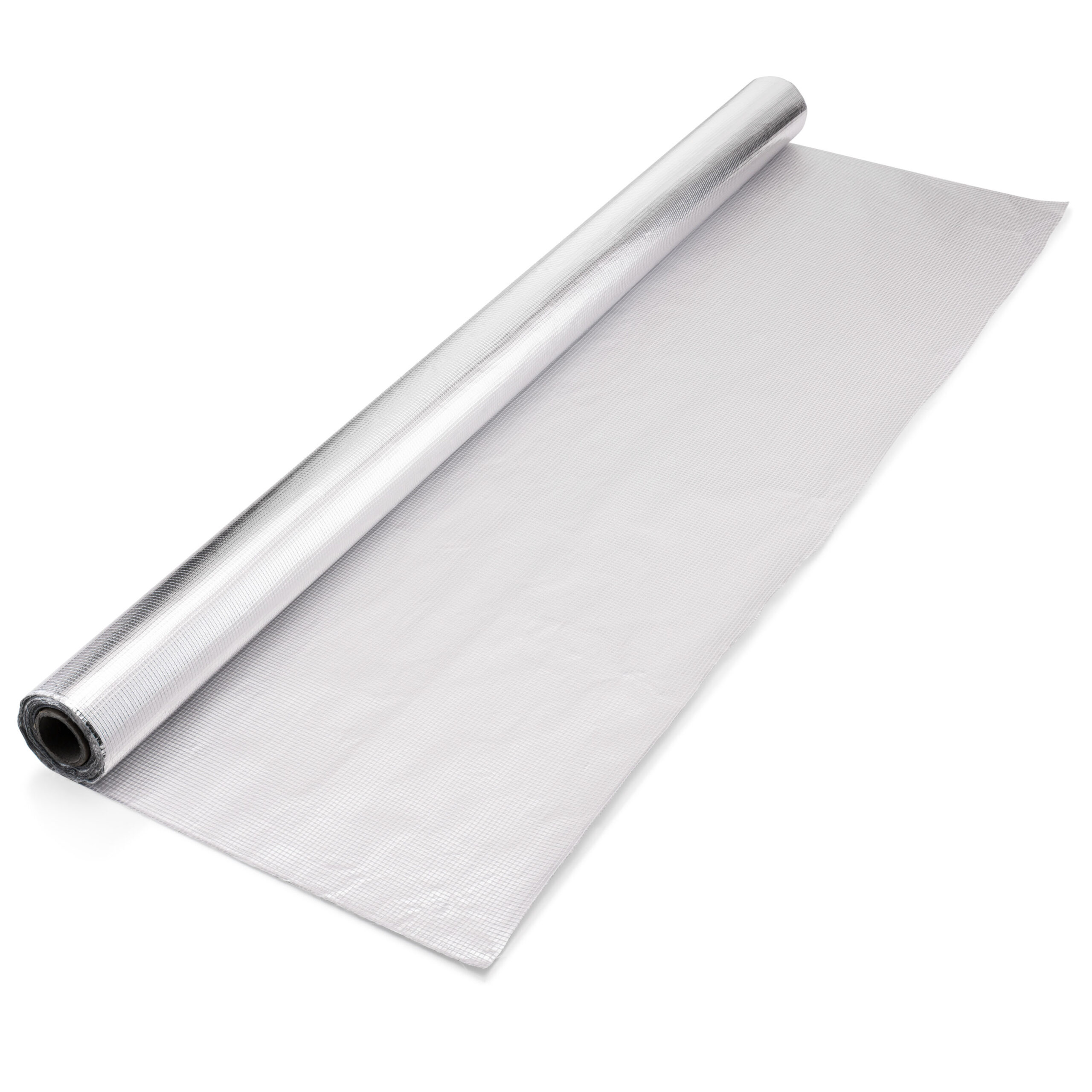

SuperFOIL SFTV 1L

2 IN 1 DESIGN

A certified 2-in-1 product, providing high-performing radiant barrier, and a vapour control layer—all within a single product.

ACHIEVE BUILDING COMPLIANCE

Meet or exceed project requirements, whether used on its own or in hybrid solutions. Rigorous testing ensures compliance with the latest building regulations.

REFLECTIVE PROPERTIES

Reflects up to 95% of radiant heat.

EASY TO INSTALL

Multifunctional,  lightweight and easy to install design that requires no specialist tools.

IDEAL FOR USE IN

New build, retrofit, timber-frame and DIY projects to achieve maximum performance, while maintaining a slim profile.

CLAIM YOUR FREE SAMPLE PACK

How SuperFOIL SFTV 1L Benefits You

SFTV 1L is a true 2-in-1 designed product, providing a reflective radiant barrier in addition to a vapour control layer, outshining traditional insulation solutions when used in place of a standard vapour membrane. The product has been rigorously tested and certified to achieve almost three times the performance of a standard vapour control layer. This means that the high vapour resistance prevents warm air or water vapour from penetrating through the wall, significantly reducing the risk of condensation, mould, and subsequent structural damage to your property.

The highly reflective surface of SFTV 1L allows it to act as a radiant barrier. By reflecting radiant heat, SFTV 1L minimises solar gain and overheating in summer, keeping your home cool in the summer and retaining heat inside the property during winter for warmth. With the prevention of condensation and mould, a clean, thermally efficient  and comfortable indoor environment is also guaranteed year-round.

Applications

Due to their highly reflective properties, SuperFOIL SFTV 1L can be applied across roofs, walls, and floors in new build, retrofit, and extension projects, whether domestic or commercial. The thin, easy-to-install and clever design facilitates the application and ensures tailored solutions for every project, either in single or duet setups, with minimal wastage and no unnecessary cleaning up after installation. This also eliminates your need to integrate any additional vapour control products to protect your property.

image image image

Technical Information

Technical Information

SELECT VARIABLE

THERMAL PERFORMANCE
PRODUCT DIMENSIONS
FIRE PERFORMANCE
ADDITIONAL INFO
Specification Value
Product SFTV 1L
Core Performance N/A
Roof Performance* 0.45 R Value
Wall Performance* 0.66 R Value
Floor Performance* 1.31 R Value
Emittance 0.05

*Core value + 2 air spaces / EN 16012

Specification Value
Thickness <1mm
Length 20m
Width 1.2m
Coverage 24m²
Weight 4kg

*Core value + 2 air spaces / EN 16012

Specification Value
Reaction To Fire (Euroclass) Class E (Behind Plasterboard)

*Core value + 2 air spaces / EN 16012

Specification Value
Water Vapour Resistance 1200MNs/g
Resistance To Water Penetration W1
Tensile Properties (Length) 480N/50mm
Tensile Properties (Width) 415N/50mm
Resistance to Tearing (Length) 428N
Resistance to Tearing (Width) 453N
Elongation (Length) 4%
Elongation (Width) 3%
Flexibility at Low Temp. -40°C

*Core value + 2 air spaces / EN 16012
