SuperFOIL SF19BB

Let your homes breathe with our reflective and water-resistant membranes.

Reflective Breather Membranes For Use In Roofs, Walls & Floors…

Combine the high performance of our multifoil range with a breathable membrane, and you’ll get our reflective Breather Membrane range. Designed with a certified ‘W1’ watertight membrane, our BB range ensures exceptional thermal performance, effectively minimising condensation, temperature differences, and addresses all your energy loss hotspots. Not only will you save on your energy bills, but you’ll also benefit from enhanced comfort all year round.

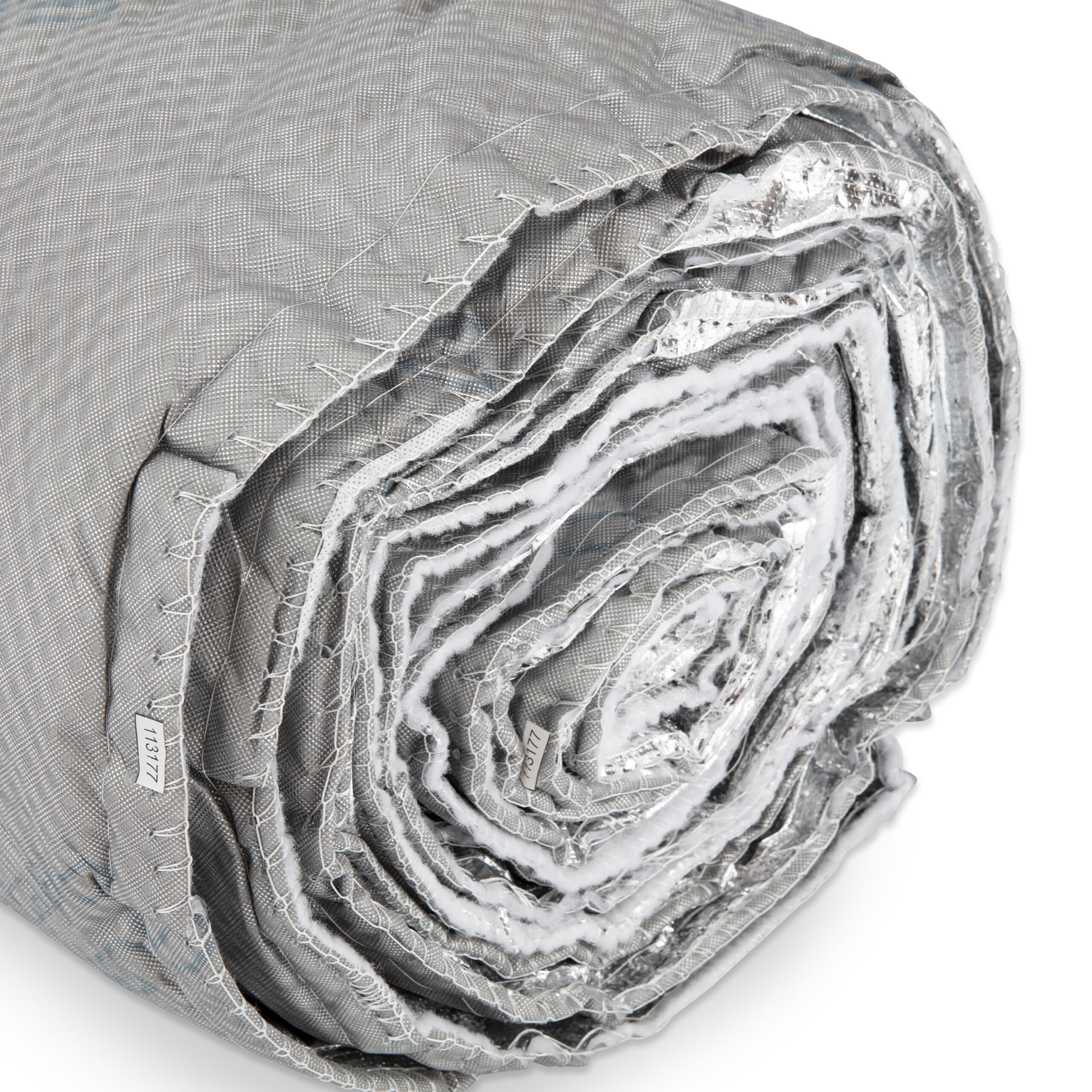

SuperFOIL SF19BB

3 IN 1 DESIGN

A certified 3-in-1 product, providing high-performing insulation, breather membrane, and a radiant barrier—all within a single product.

ACHIEVE BUILDING COMPLIANCE

Meet or exceed project requirements, whether used on its own or in hybrid solutions. Rigorous testing ensures compliance with the latest building regulations.

EASY TO INSTALL

Multifunctional,  lightweight and easy to install design that requires no specialist tools.

SUSTAINABLE

Each product is manufactured from up to 40% recycled plastic content and is fully recyclable at the end of its 50+ year lifespan.

IDEAL FOR USE IN

New build, retrofit, timber-frame and DIY projects to achieve maximum performance, while maintaining a slim profile.

CLAIM YOUR FREE SAMPLE PACK

How SuperFOIL SF19BB Benefits You

SuperFOIL’s BB range is the perfect external insulation solution for any project. It includes an additional reflective breather membrane, highly insulating waddings, and a radiant barrier.

The perforated design of the layers maintains breathability throughout the entire product while delivering superior thermal performance. With its ‘W1 watertight’ property, SuperFOIL BB products allow moisture to escape outside, minimising the risks of condensation damage to your property. When installed correctly, the BB range functions as a reliable secondary rain barrier.

Similar to our standard multifoil range, these breathable foils are also designed to be lightweight and easy to install, saving you space, time, and money.

Applications

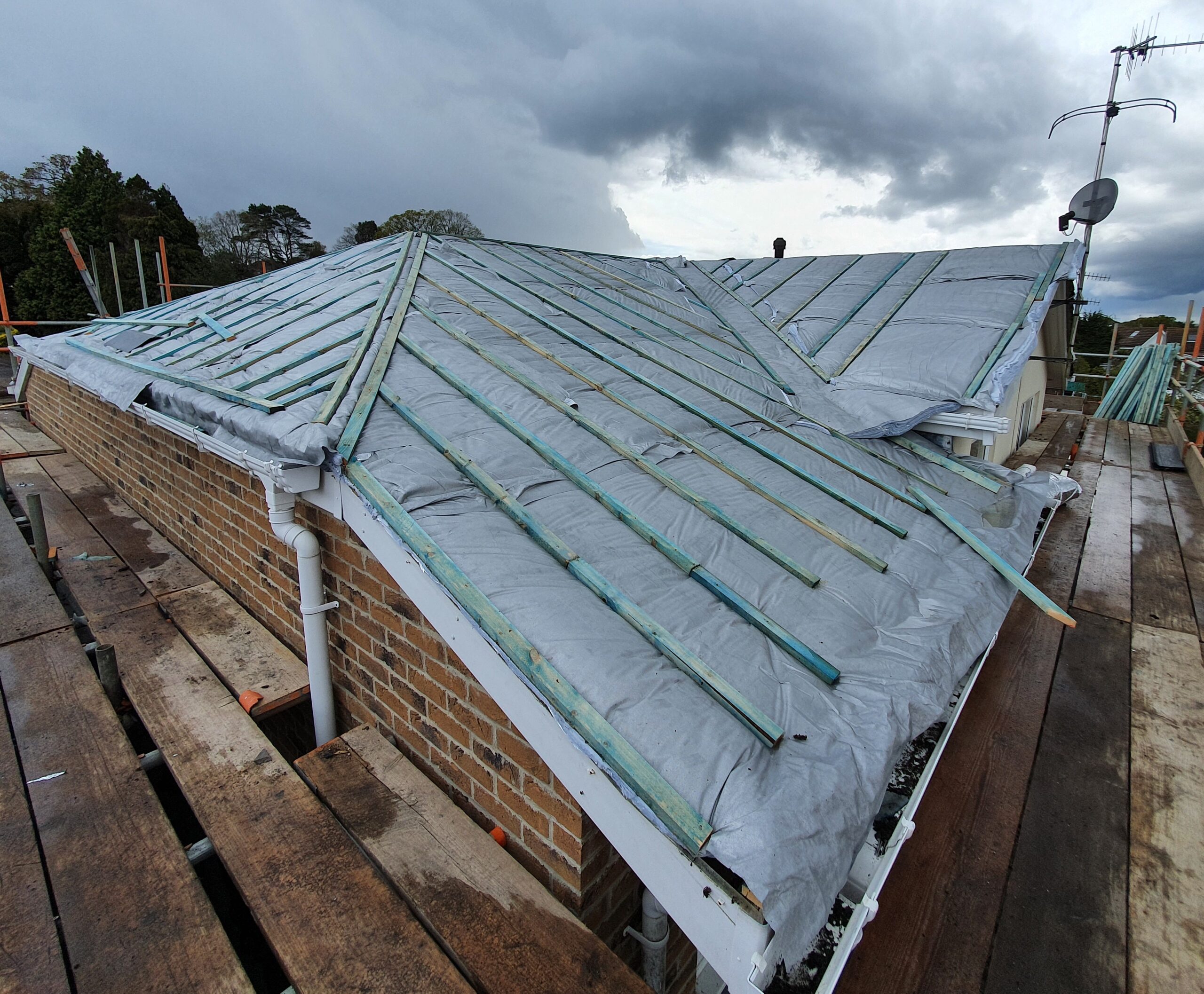

Compared to many traditional insulation types, SuperFOIL SF19BB’s ease of installation, flexibility and multifunctional design minimise product wastage and installation time. Offering excellent value for money, our breathable insulation is perfect for new builds, renovations, and extensions. It is versatile enough to be used in both domestic and commercial projects, regardless of the project’s size and scale. This means you don’t need to purchase additional breathable products to protect your roof and walls while insulating!

image image

Technical Information

Technical Information

SELECT VARIABLE

THERMAL PERFORMANCE
PRODUCT DIMENSIONS
FIRE PERFORMANCE
ADDITIONAL INFO
PRODUCT COMPOSITION
Specification Value
Product SF19BB
Core Performance 1.45 R Value
Roof Performance* 2.03 R Value
Wall Performance* 2.24 R Value
Emittance 0.19/0.05

*Core value + 2 air spaces / EN 16012

Specification Value
Thickness (Nominal) 40mm
Length 10m
Width 1.2/1.5m
Coverage 12/15m2
Weight 8/10kg

*Core value + 2 air spaces / EN 16012

Specification Value
Reaction To Fire (Euroclass) Class F

*Core value + 2 air spaces / EN 16012

Specification Value
Water Vapour Resistance 0.115MNs/g
Resistance To Water Penetration W1
Tensile Properties (Length) 238/227N/50mm
Tensile Properties (Width) 111/100N/50mm
Resistance to Tearing (Length) 179N
Resistance to Tearing (Width) 179N
Elongation (Length) 61/57%
Elongation (Width) 92/87%
Flexibility at Low Temp. -40°C

*Core value + 2 air spaces / EN 16012

Specification Value
Reflective Coated Breather Membrane 1
Perforated Aluminium Coated Reflective Foil PET 3
Perforated Reinforced Heavy Outer Reflective Foil 1
Loft Quilt 80g/sqm Layers 4
Total Layers 9

*Core value + 2 air spaces / EN 16012
