SuperFOIL products applied to an external solid wall

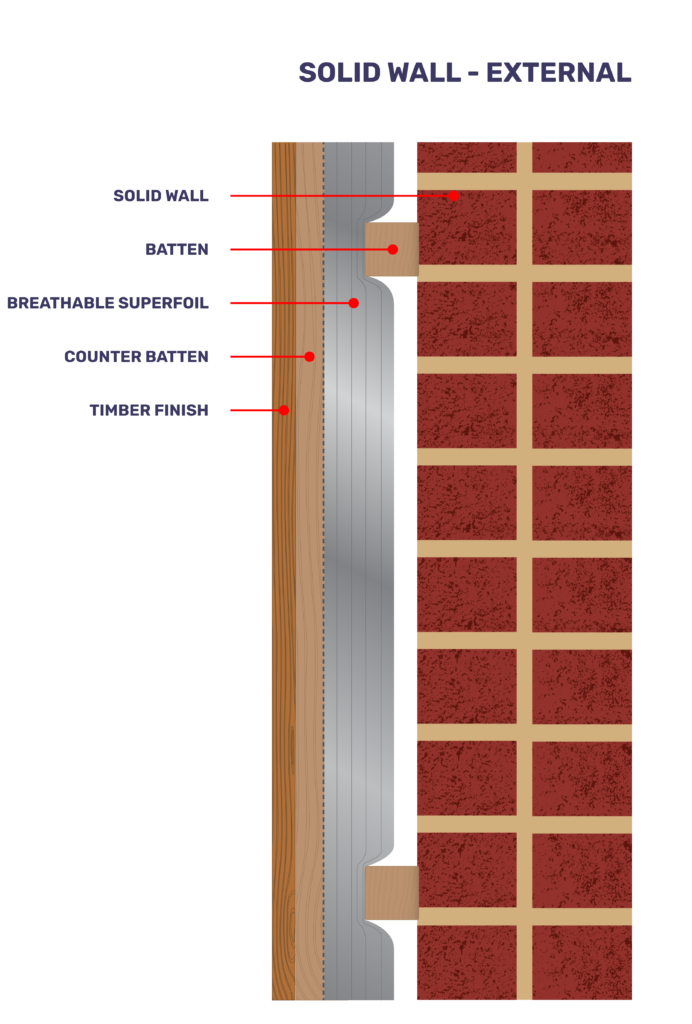

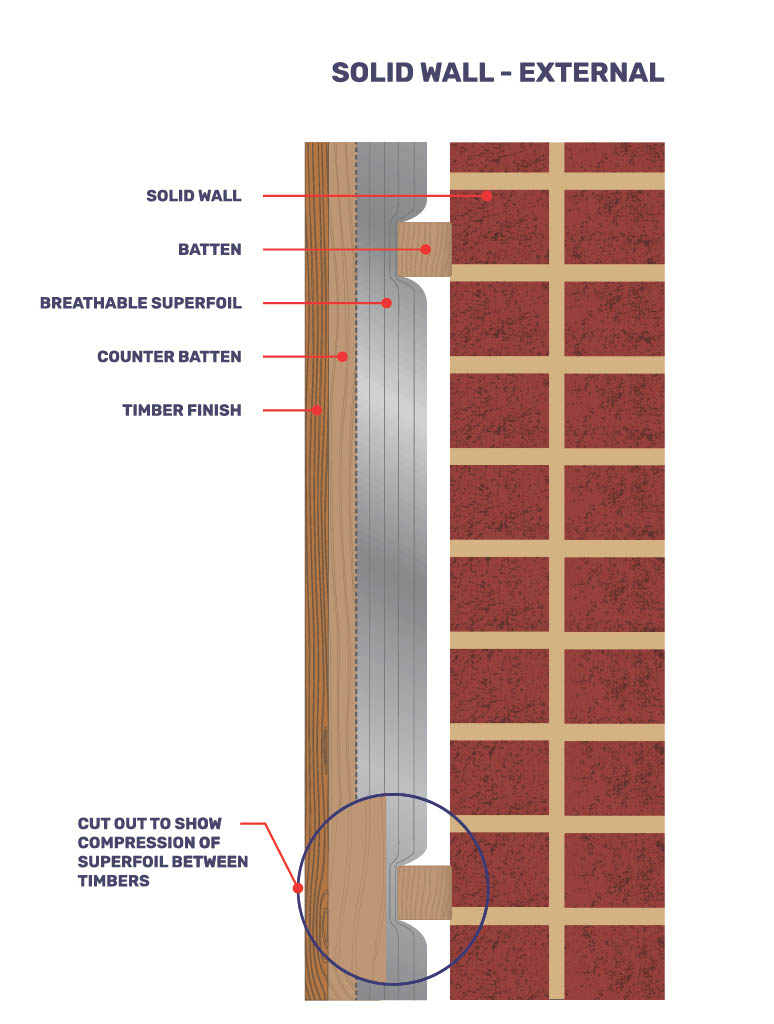

SOLID WALL –EXTERNAL

You can protect and insulate the external walls of your project with SuperFOIL’s W1 watertight and breathable multifoils. It offers higher functionality, moisture protection, improved space optimisation, and the ability to install up to twice as fast compared to traditional insulation types.

Application

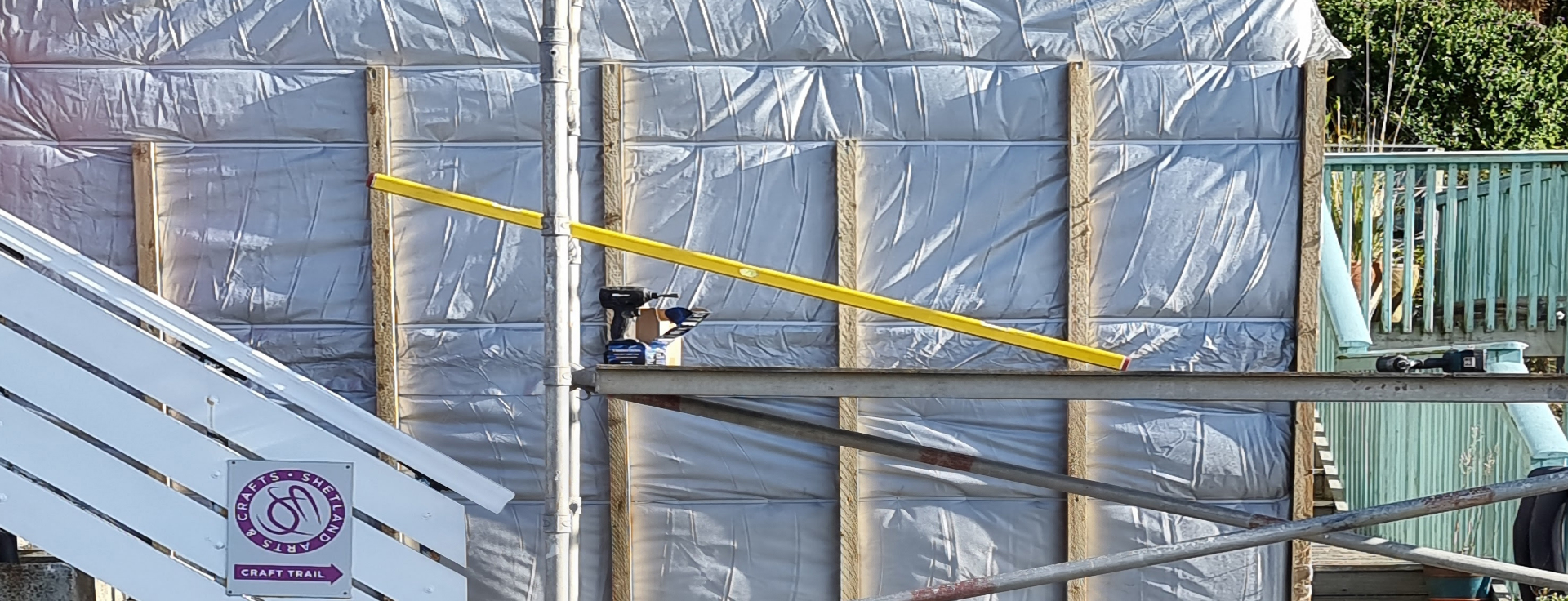

To insulate the external wall, attach horizontal battens of the correct size at a maximum of 600mm centers, placing them at the top, bottom, and around doors or windows. Apply SuperFOIL horizontally to the battens with the built-in overlap pointing towards the floor, starting at the bottom and working upwards. While horizontal installation is recommended for added protection, it can be installed vertically with no adverse effects if necessary. If applying vertically, start at the highest point and roll the product down.

When fitting the insulation, keep the product taut while stapling at intervals of 50mm-100mm. Cut SuperFOIL to the required length, utilizing the built-in overlap and tape for a sealed finish. Trim the SuperFOIL at the floor and top of the area, allowing for a small overlap. Secure the product by fixing battens around the perimeter, creating an airtight finish. Ensure all tears or cuts are sealed fully using SuperFOIL Butyl tape or another suitable waterproof tape to achieve an airtight finish.

To complete the installation, add vertical counter battens of the correct size on top of the SuperFOIL to create an air gap. Fix the external finish onto the battens following the manufacturer’s recommendations, ensuring no section of SuperFOIL is exposed to the elements (should be covered within 48 hours after fitting).

SuperFOIL’s flexibility extends to its application; you can use it on its own, in single/duet configurations, or in combination with traditional insulation types like mineral wool or PIR boards.

Best Products for External Application

Choose your Solution

Use the charts below to find the ideal combination of insulations for your project

Construction Thickness R-Value
External Surface 0.040
Cladding 15mm 0.129
Batten / Cavity 38-63mm 0.455
SuperFOIL 40-75mm See Table
Batten / Cavity 38-63mm 0.713
Brickwork 235mm 0.305
Internal Surface 0.100

Technical Information

SELECT VARIABLE

THERMAL PERFORMANCE
PRODUCT DIMENSIONS
FIRE PERFORMANCE
ADDITIONAL INFO
PRODUCT COMPOSIITON
SF19BB SF40BB
Core performance 1.454 R Value 2.92 R Value
Roof Performance* 2.22 R Value 3.67 R Value
Wall Performance* 2.53 R Value 3.98 R Value
Emittance 0.19 / 0.03 0.19 / 0.03

*Core value + 2 air spaces / EN 16012

SF19BB SF40BB
Thickness 40mm 75mm
Length 10m 10m
Width 1.2/1.5m 1.5m
Coverage 12/15m2 15m2
Weight 8/10kg 20kg

*Core value + 2 air spaces / EN 16012

SF19BB SF40BB
Reaction To Fire (Euroclass) Class E (Behind Plasterboard) Class E (Behind Plasterboard)

*Core value + 2 air spaces / EN 16012

SF19BB SF40BB
Water Vapour Resistance 0.115MNs/g 0.115MNs/g
Resistance To Water Penetration W1 W1
Tensile Properties (Length) 238 / 227 N/50mm 238 / 227 N/50mm
Tensile Properties (Width) 111 / 100 N/50mm 111 / 100 N/50mm
Resistance to Tearing (Length) 179N 179N
Resistance to Tearing (Width) 179N 179N
Elongation (Length) 61 / 57% 61 / 57%
Elongation (Width) 92 / 87% 92 / 87%
Flexibility at Low Temp. -40°C -40°C

*Core value + 2 air spaces / EN 16012

SF19BB SF40BB
Reflective Coated Breather Membrane 1 1
Perforated Aluminium Coated Reflective Foil PET 3 8
Perforated Reinforced Heavy Outer Reflective Foil 1 1
Loft Quilt 80g/sqm Layers 4 9
Total Layers 9 19

*Core value + 2 air spaces / EN 16012
