U-VALUE CALCULATOR

OVER JOIST
(EXTERNAL)

Insulating over the joist requires an additional breathable membrane to reduce condensation and water damage. With SuperFOIL’s external solution in your build-up, you get a W1 watertight finish, high levels of moisture protection, improved space optimisation, and the ability to install up to twice as fast compared to traditional insulation types.

TALK TO AN EXPERT GET INSTALLATION GUIDE

Application

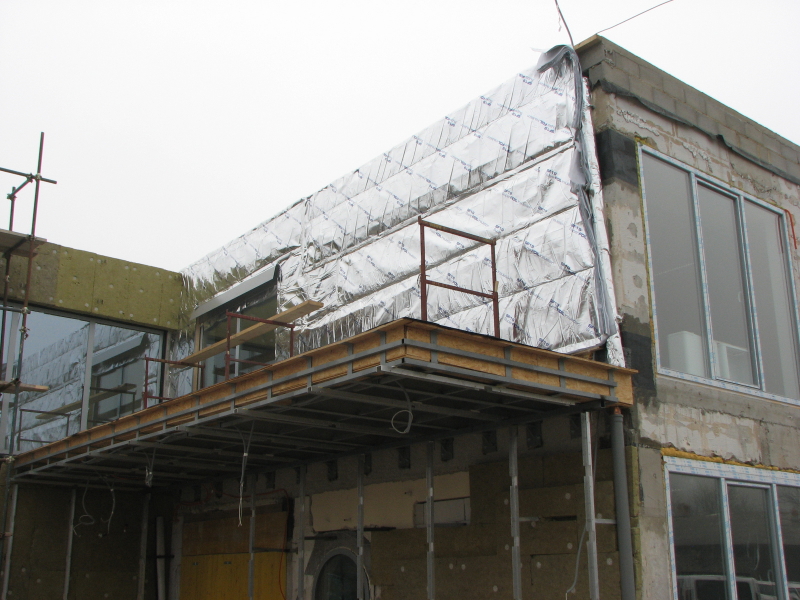

Apply SuperFOIL directly from the roll horizontally on the internal joist face, starting at the external wall. Staple the roll’s start onto your joist, maintaining tension while stapling at 50mm-100mm intervals with the correct size staples.

After completing a length, ensure a minimum 50mm overlap for the next layer and securely fix by stapling at the joints.
Seal joints, tears, and cuts with SuperFOIL 100mm tape, paying special attention to any penetrations through the insulation for an air-tight finish.
Complete the installation by fixing counter battens horizontally on top of the insulation (maximum 600mm centres) to provide adequate air space. Attach your external finish to battens, following the manufacturer’s guidelines.

SuperFOIL should be stored indoors until used and covered within 48 hours after fitting.

SuperFOIL’s flexibility extends to its application; you can use it on its own, in single/duet configurations, or in combination with traditional insulation types like mineral wool or PIR boards.

Best Products for External Application

SuperFOIL SF19+

icon

2.27 R Value
When used in a roof

SuperFOIL SF40

icon

3.47 R Value
When used in a roof

SuperFOIL SF60

icon

4.42 R Value
When used in a roof

Choose Your Solution

Use the charts below to find the ideal combination of insulations for your project

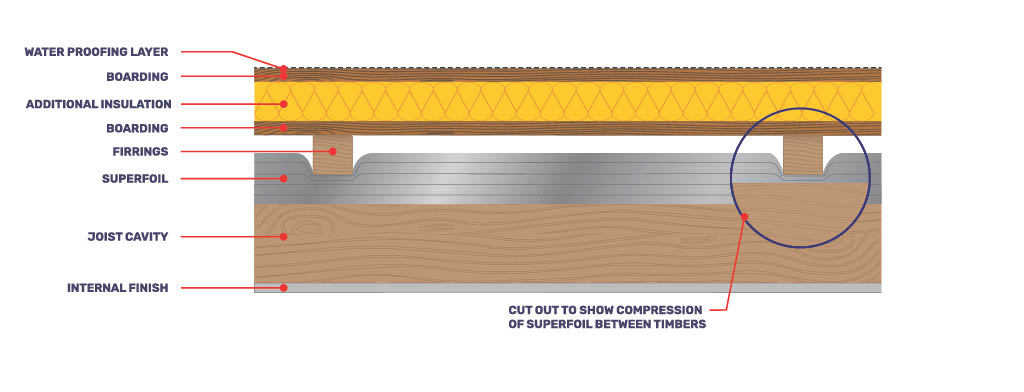

Construction Thickness R-Value
External Surface – 0.040
Single Ply Membrane 1mm –
OSB 9mm 0.138
Firrings / Cavity 0-75mm 0.476
SuperFOIL 40-100mm See Table
Joist Cavity 25mm 0.476
Additional Insulation 40-100mm See Table
Joist Cavity 25-63mm 0.184
Plasterboard 12.5mm 0.066
Internal Surface – 0.1

Technical Information

SELECT VARIABLE

THERMAL PERFORMANCE
PRODUCT DIMENSIONS
FIRE PERFORMANCE
ADDITIONAL INFO
PRODUCT COMPOSIITON
SF19+ SF40 SF60
Core performance 1.63 R Value 2.57 R Value 3.58 R Value
Roof Performance* 2.27 R Value 3.47 R Value 4.42 R Value
Wall Performance* 2.73 R Value 3.91 R Value 4.88 R Value
Floor Performance* 4.37 R Value 5.22 R Value 6.53 R Value
Emittance 0.05 0.05 0.05

*Core value + 2 air spaces / EN 16012

SF19+ SF40 SF60
Thickness (Nominal) 45mm 65mm 100mm
Length 10m 10m 8m
Width 1.2m/1.5m 1.5m 1.5m
Coverage 12m²/15m² 15sqm 12m²
Weight 10kg/13kg 15kg 17.75kg

*Core value + 2 air spaces / EN 16012

SF19+ SF40 SF60
Reaction To Fire (Euroclass) Class E Class E Class E

*Core value + 2 air spaces / EN 16012

SF19+ SF40 SF60
Water Vapour Resistance 2,500MNs/g 2,500MNs/g 2,500MNs/g
Resistance To Water Penetration W1 W1 W1
Tensile Properties (Length) 757/ 784 N/50mm 757 N/50mm 757/ 784 N/50mm
Tensile Properties (Width) 726 / 757 N/50mm 726 N/50mm 726 / 757 N/50mm
Resistance to Tearing (Length) 450N 450N 450N
Resistance to Tearing (Width) 491N 491N 491N
Elongation (Length) 15% / 17% 15% / 17% 15% / 17%
Elongation (Width) 14% / 16% 14% / 16% 14% / 16%
Flexibility at Low Temp. -40°C -40°C -40°C

*Core value + 2 air spaces / EN 16012

SF19+ SF40 SF60
Reinforced Heavy Duty Double Foil Laminated Outer Layers 2 2 2
Mesh Reinforced Foil Laminated Outer Layers 0 0 0
Aluminium Coated Reflective Foil PET Layers 4 8 11
Thermo Foam Separation Layers 0 0 0
Loft Quilt 80g/sqm Layers 5 9 12
Total Layers 11 19 25

*Core value + 2 air spaces / EN 16012
